Description

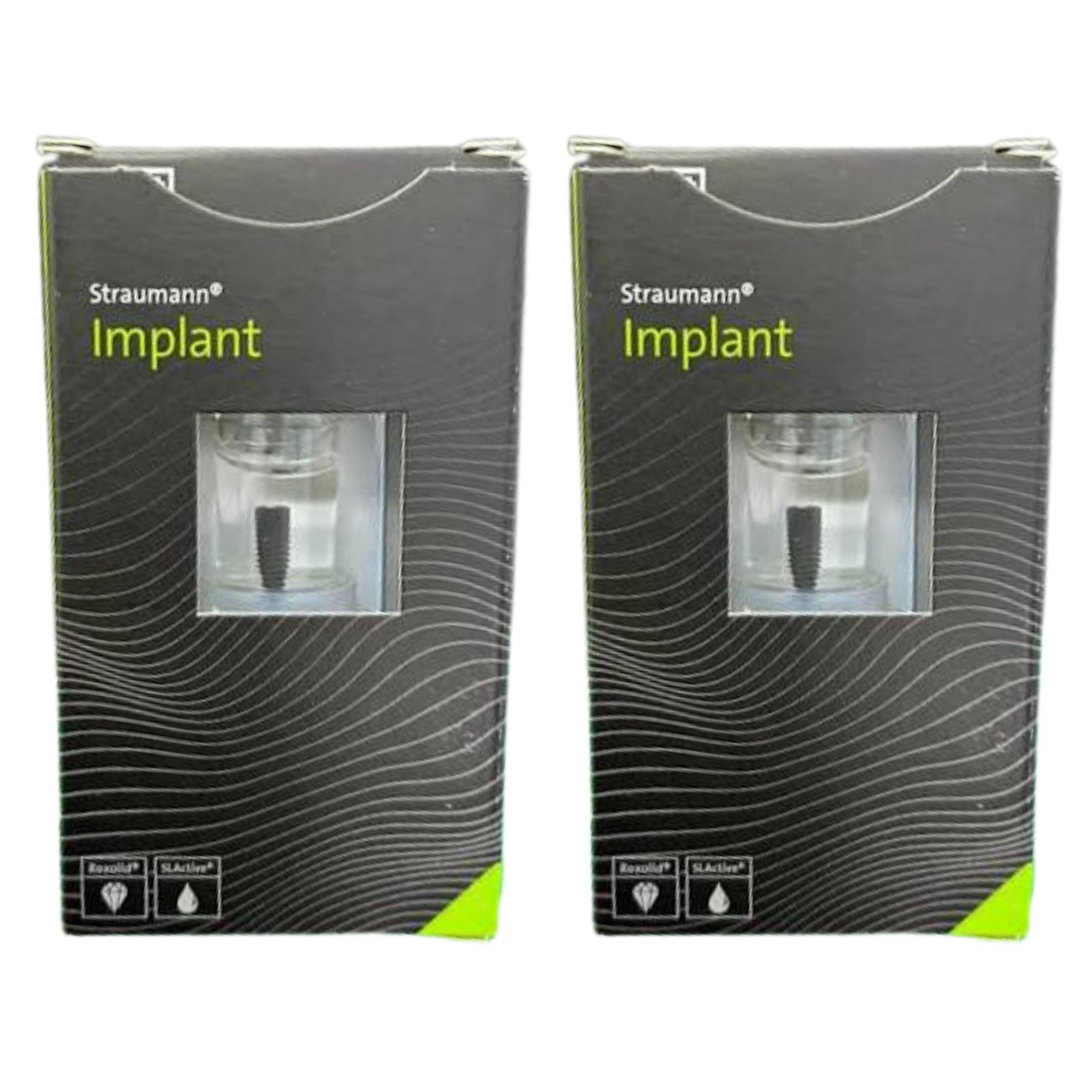

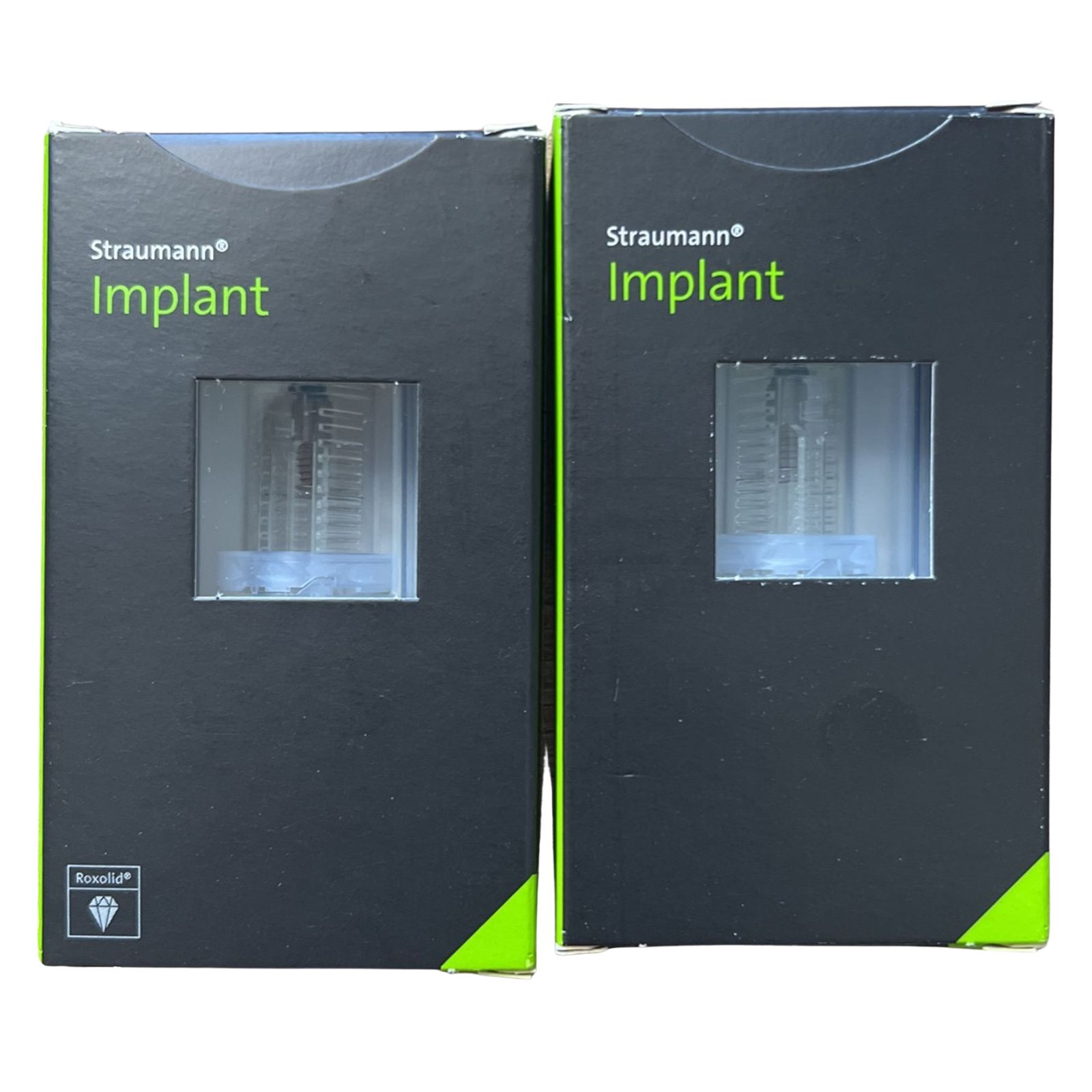

Straumann Bone Level Tapered (BLT) Dental Implant Fixture
Achieve predictable primary stability and outstanding bone preservation with the Straumann Bone Level Tapered (BLT) Implant Fixture. Combining the clinically proven features of the premium Straumann Bone Control Design with an apically tapered, self-cutting body, this endosteal fixture is specifically engineered to master challenging anatomical landscapes and immediate placement protocols.
The BLT design is optimized to provide exceptional initial mechanical grip in soft bone structures and fresh extraction sockets by gently compressing underprepared osteotomies. By extending the rough osteoconductive surface up to the collar of the fixture, this bone-level design encourages early osseointegration and minimizes marginal bone resorption.
Key Performance Features
-
- Exceptional Primary Stability: Tapered core profile ensures superior initial mechanical fixation, even in extraction sites or very soft bone conditions.
- Advanced Anatomical Management: Features an 11-degree or 9-degree apical taper that safely avoids critical surrounding structures, converging root tips, facial undercuts, and narrow ridges.
- CrossFit Internal Connection: Deep internal connection design prevents micro-movements, ensures accurate component seating, and simplifies everyday prosthetic indexing.
- Bone Control Design: Built to optimize crestal bone preservation and support long-term soft tissue health around the definitive emergence profile.
Clinical Intent by Diameter
-
- 3.3mm Diameter (Narrow CrossFit – NC): Engineered primarily for narrow interdental spaces or thin, atrophied alveolar ridges.
- 4.1mm Diameter (Regular CrossFit – RC): The multi-purpose solution for standard restorations across both the maxilla and mandible.
- 4.8mm Diameter (Regular CrossFit – RC): Designed to safely distribute heavy occlusal forces in wide interdental spaces and wide posterior ridges.
Product Specifications
- Manufacturer: Straumann
- Implant Line: Bone Level Tapered (BLT)
- Diameter Range: 3.3mm, 4.1mm, 4.8mm
- Available Lengths: 8mm, 10mm, 12mm, 14mm, 16mm, 18mm
- Internal Connection Profiles: Narrow CrossFit (NC) for 3.3mm / Regular CrossFit (RC) for 4.1mm and 4.8mm
- Surface Topography Options: SLActive (Active Hydrophilic) or SLA (Sandblasted, Large-Grit, Acid-Etched)
- Material Variants: Roxolid High-Performance Alloy (Titanium-Zirconium) or Grade 4 Commercial Pure Titanium
- Sterilization: Delivered sterile in individual secure premium double-packaging
| Size | BLT 3.3mm SLA 8mm, BLT 3.3mm SLA 10mm, BLT 3.3mm SLA 12mm, BLT 4.1mm SLA 8mm, BLT 4.1mm SLA 10mm, BLT 4.1mm SLA 12mm, BLT 4.8mm SLA 8mm, BLT 4.8mm SLA 10mm, BLT 4.8mm SLA 12mm |
|---|
