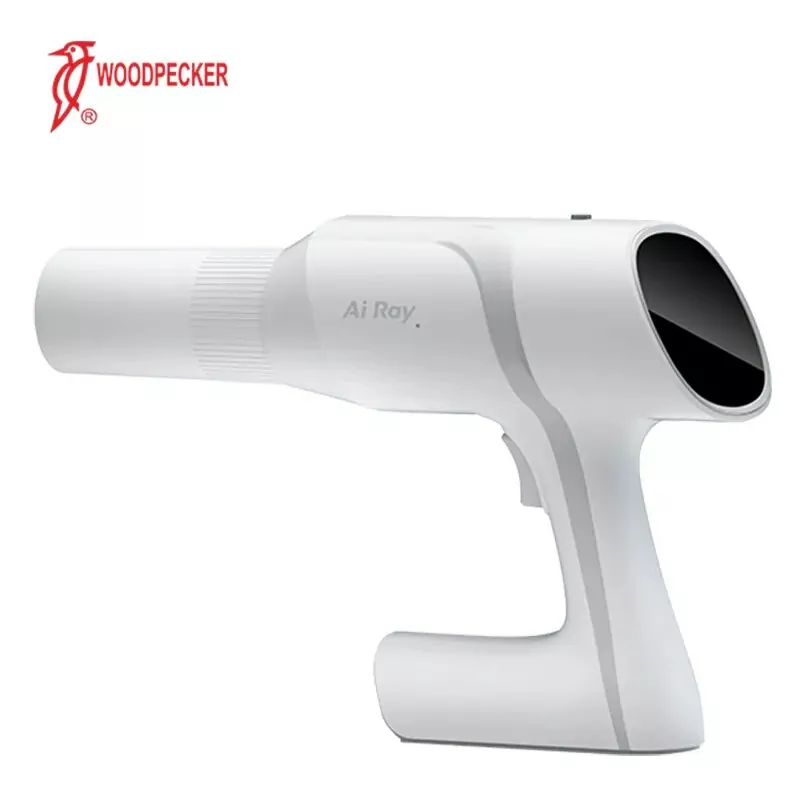

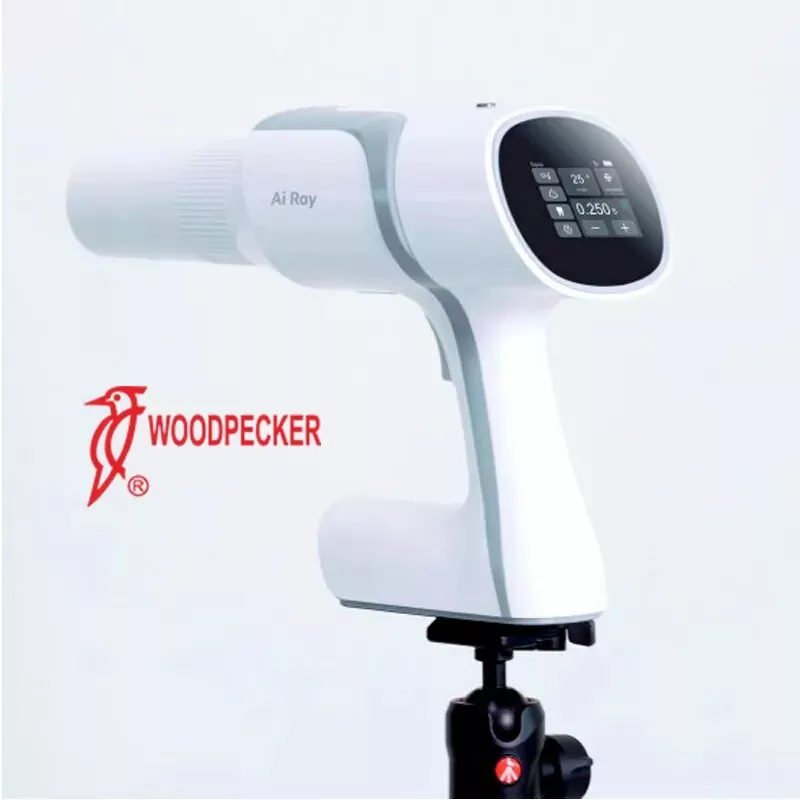

Woodpecker Ai Ray Portable X-Ray Handheld Machine For Dental Use

SKU

$1,600.00

Description

Woodpecker Ai Ray Portable X-Ray Machine is a compact & lightweight device, that ensures the safety of both dentist & patient by minimal radiation. It produces a clear, higher-quality image with a better shooting effect through an inbuilt Canon tube and a shorter exposure time.

Ai Ray Portable X-Ray Offers huge rechargeable battery enables easy & multiple shooting keeping everywhere.

This X-ray unit is compact in size and its portable nature helps you to use it in a comfortable manner. Moreover, this unit is highly ensured with safety standards owing to its minimum exposure time.
Clinical Benefits :
  • High efficiency for sharp radiography gives high-quality images.
  • Non-invasive diagnostic imaging equipment taking care of the patient’s safety to radiation exposure.
  • All X-rays are compatible with IOPA Film and RVG leading to the convenience of operations.
Key Specification

1. Power adapter input: 100-240V 50/60Hz 1.5A
2. Internal power supply: DC 10.8V
3. Types of radiation: X-ray
4. Electric power:

  • Maximum power: 0.21kw(70kV, 3mA, 0.1s)
  • Nominal electric power: 0.21kw(70kV, 3mA, 0.1s)

5. Tube voltage: tube voltage output is fixed at 70kV, error ±10%
6. Tube current: tube current output is fixed at 3mA, error ±20%
7. Loading time: the exposure loading time adjustment range is 0.02s~2s, the grade is adjustable, the grade is selected according to R’10 numerical system; with deviation ±(10%+1ms)
8. X-ray tube :

  • X-ray tube model: D-045;
  • Focal spot: 0.4mm;
  • Target angle: 12.5°;
  • Total filtration: 1.5mmAl/70 kV;
  • Additional filtration: 0.5mmAl/70 kV

9. Distance from focus to skin: 20cm
10. Output radiation field: Φ6cm±0.6cm
11. Product specifications :

  • Dimension: 114mm×363.8mm×245.6mm
  • Weight: 2.4KG

12. Battery specification : 10.8V/2450~15000mAh

Operation environment :

  • Environment temperature: 10°C ~ 40°C
  • Relative humidity: 30% ~ 75%
  • Atmospheric pressure: 70kPa ~ 106kPa

Transportation and storage condition :

  • Storage temperature: -20°C ~ 55°C
  • Transportation temperature: -20°C ~ 55°C
  • Relative humidity: 10% ~ 93%
  • Atmospheric pressure: 70kPa ~ 106kPa
SUPER HIGH PERFORMANCE – HIGH EFFICIENCY
  • Emission power up to 210W
  • Shorter exposure time with high power
  • Achieve stable, accurate and quick photography of different tooth positions

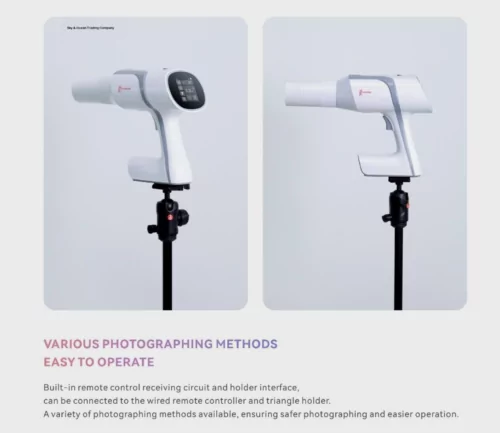

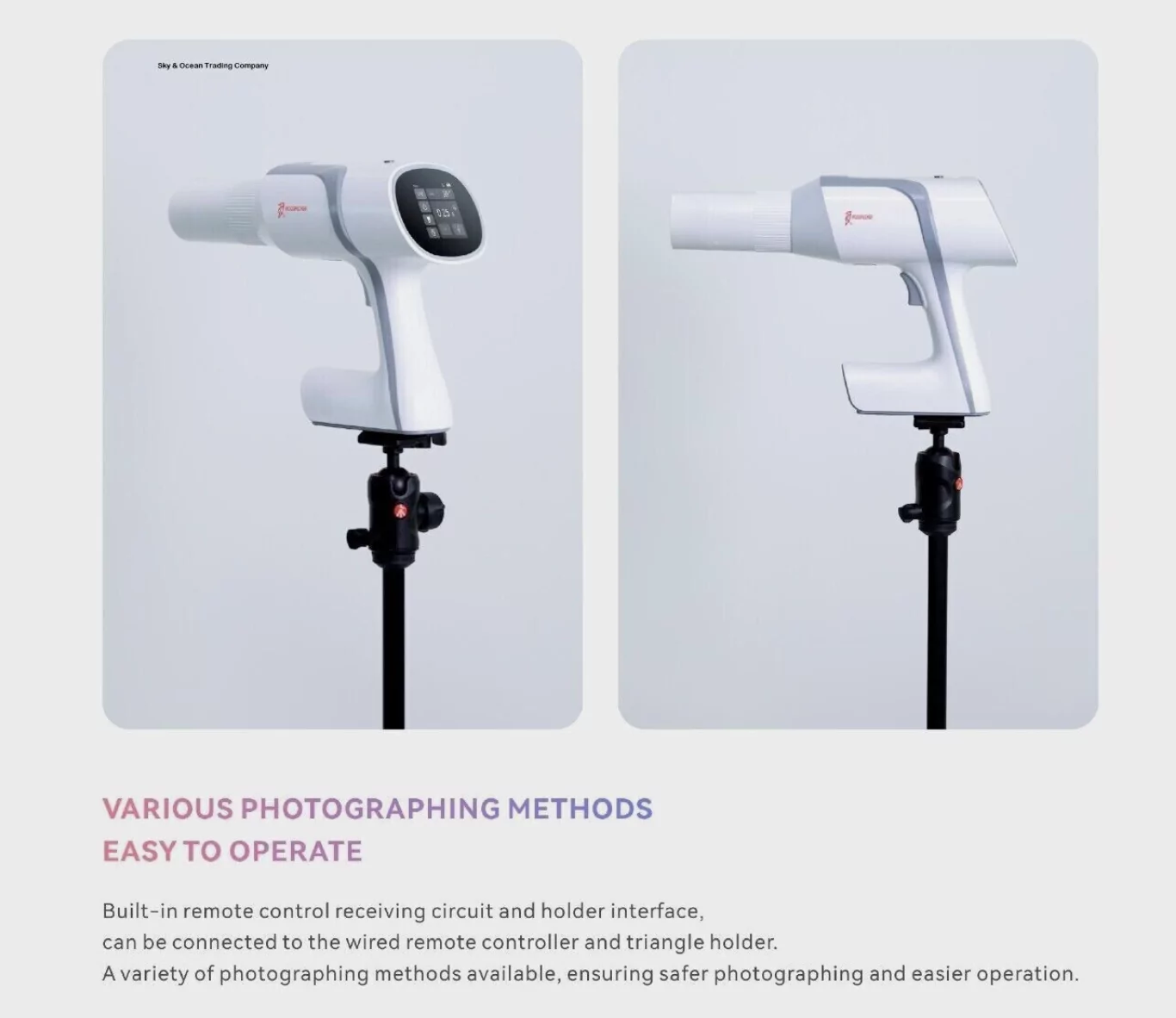

Various Photographic Methods – Easy to operate

  • Built-in remote control receiving circuit and holder interface, can be connected to the wired remote controller and triangle holder.
  • A varity of photographing methods available, ensuring safer photographing and easier operation.

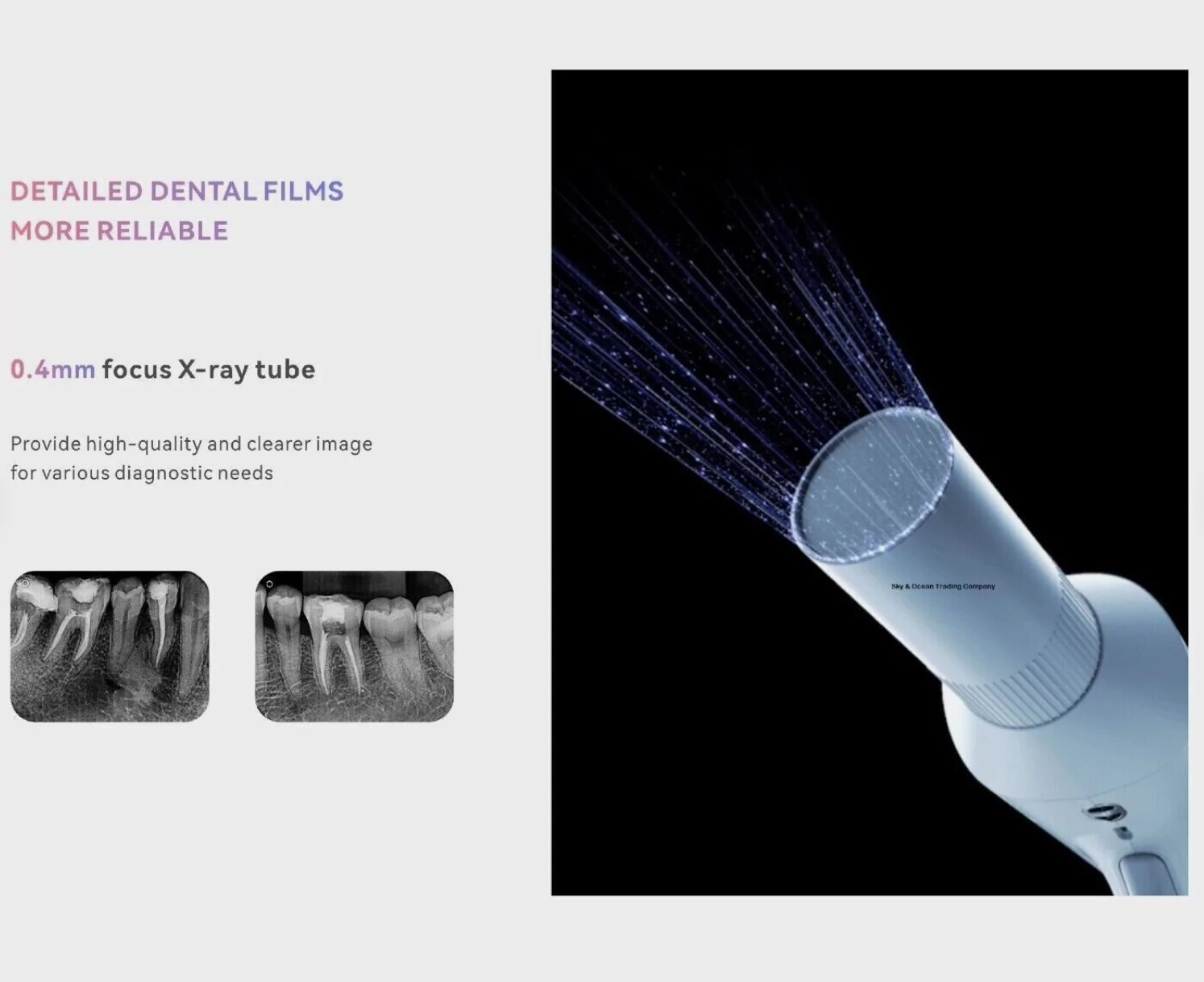

DETAILED DENTALFILMS – MORE RELIABLE
  • 0.4mm focus X-ray tube
  • Provide high-quality and clearer image for various diagnostic needs
HIGH-CAPACITY  BATTERY – LONGER ENDURANCE
  • 15000mAh high-capacity power lithium battery delivers a longer endurance.
  • More than 1,500 dental films can be taken under a full charge.
  • Takes 4hrs. to fully charge
MAXIMUM EFFICIENCY AND SAFETY
  • Constant DC high frequency and voltage current output
  • Ensure that X-ray output is not affected by battery voltage fluctuations
  • Unique internal design and lead shield
  • Efficiently minimize the X-ray leakage
  • Maximize the protection of operators from ionizing radiation

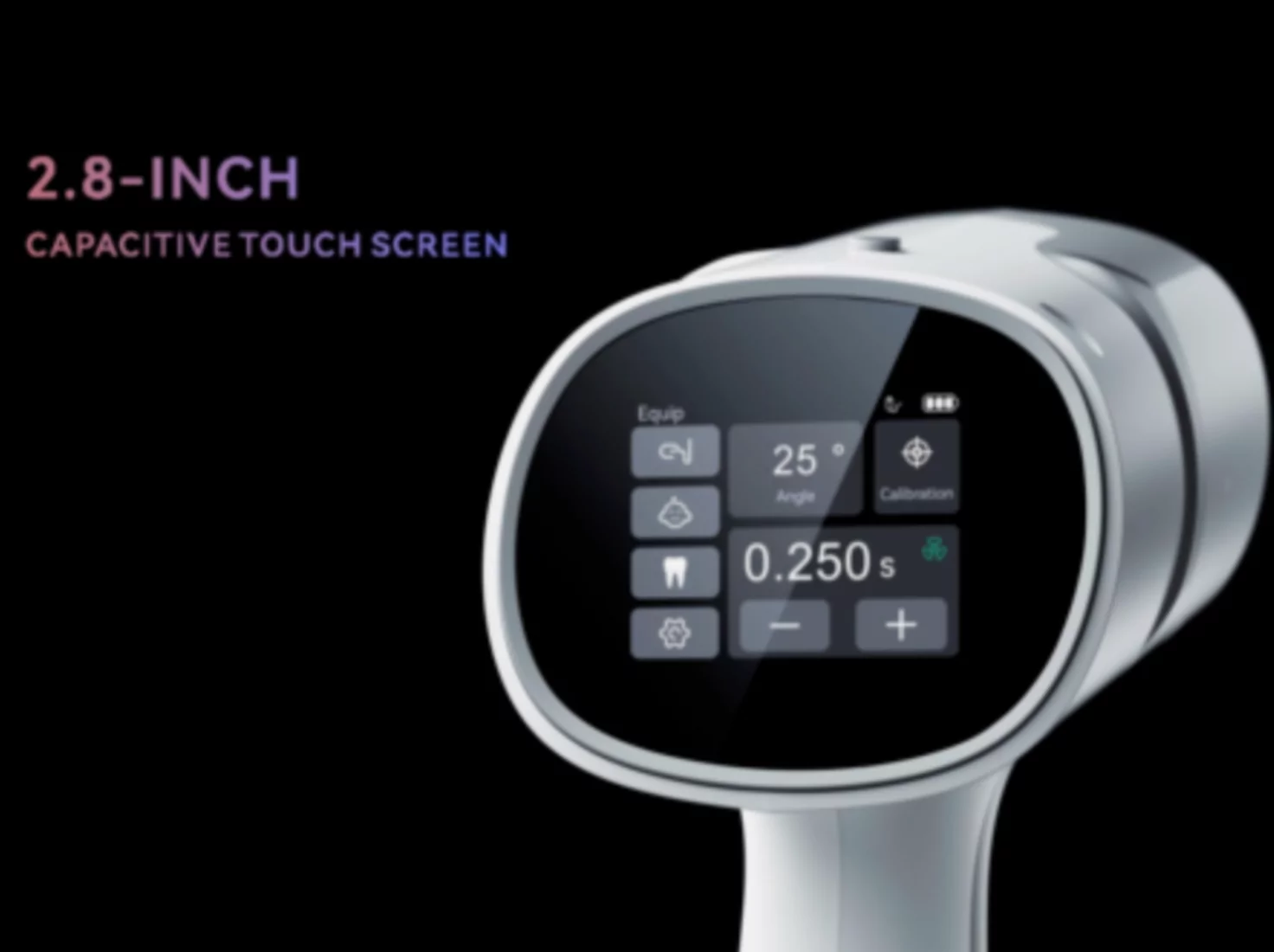

  • 2.8 Inch capacitive touch screen
